Plümat BFL 852 Infusion Bag Filling & Sealing machine
Manufacturer: Plümat Maschinenbau Vertriebsgesellschaft mbH
Category: Filling- and Closing Machines (Pharmaceutical, Cosmetics, Chemicals)

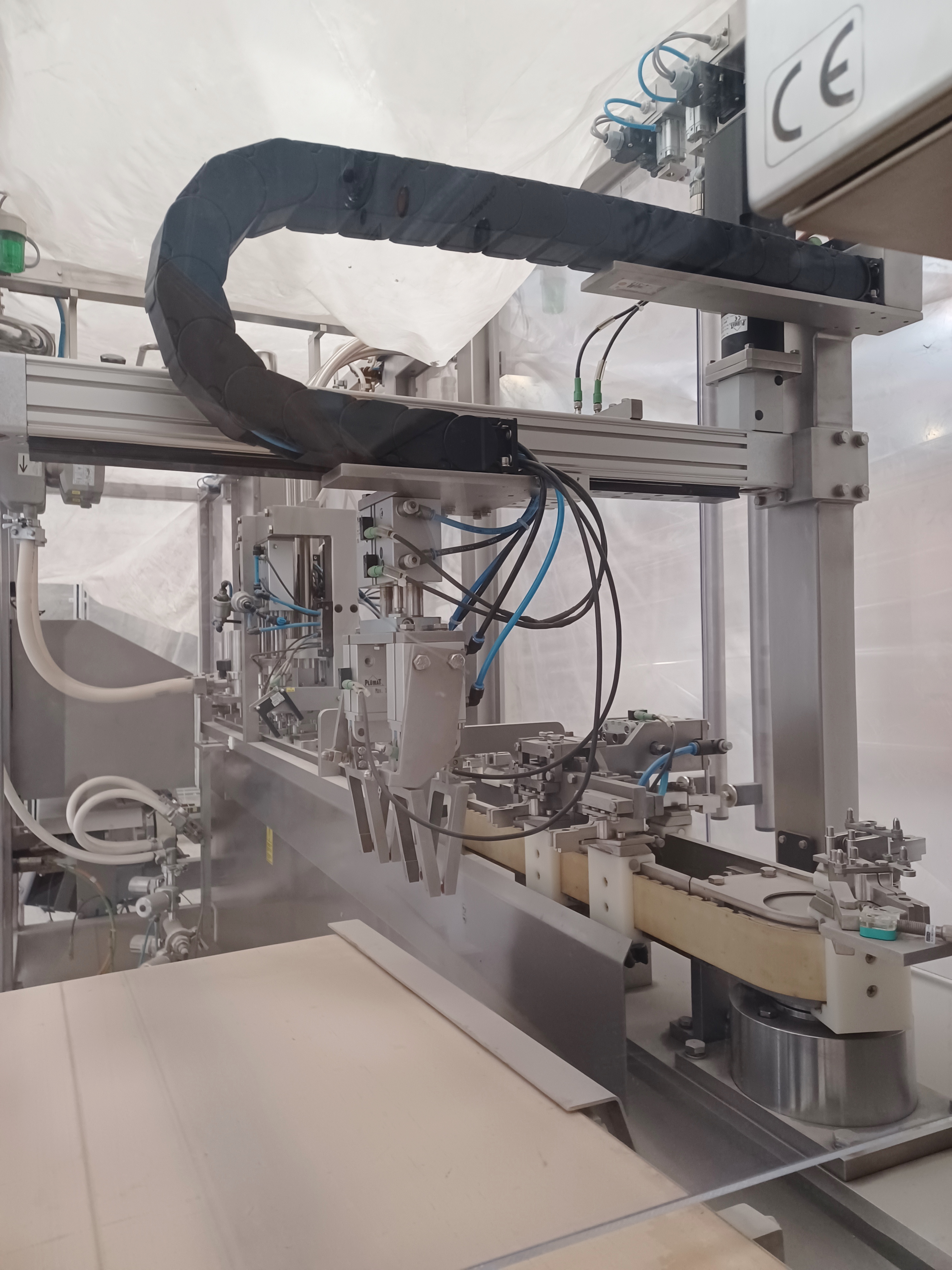

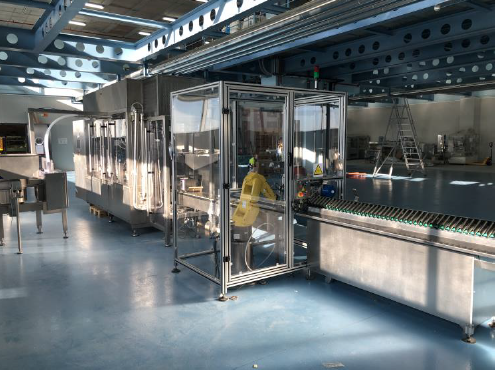

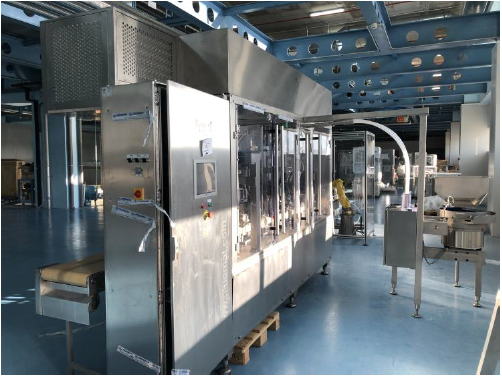

Plümat BFL 852 Linear Filling & Sealing machine for Infusion Bags of PP material, set up for format range 100 – 300ml, consisting of: Fanuc Robot loading system model LR Mate 200/c for preformed bags, transport conveyor to filling station, filling station with 2 massflowmeter systems with electromagnetic filling valves and micropressor control unit, dosing range 50 - 1000 ml, filling accuracy at 50ml +/- 2,0%, at 100ml +/- 1,5%, at 300ml +/- 1,0%, stoppering station (minitulipe SIPPEX, flipp off), outfeed conveyor, includes format parts for 50ml, 100ml, 200ml & 300ml, including laminar flow unit, output up to 2.200 bags per hour, electrics 230/400V/50Hz, power supply 12kW, power consumption 9kW, compressed air 6 bar, machine footprint approx. 7500 x 2400 mm, machine height approx. 2100mm.
